异步流量整形

原文链接

讲解视频

目标

在此示例中，我们演示如何使用异步流量整形器（ATS）。

INET version: 4.4

Source files location: inet/showcases/tsn/trafficshaping/asynchronousshaper

模型

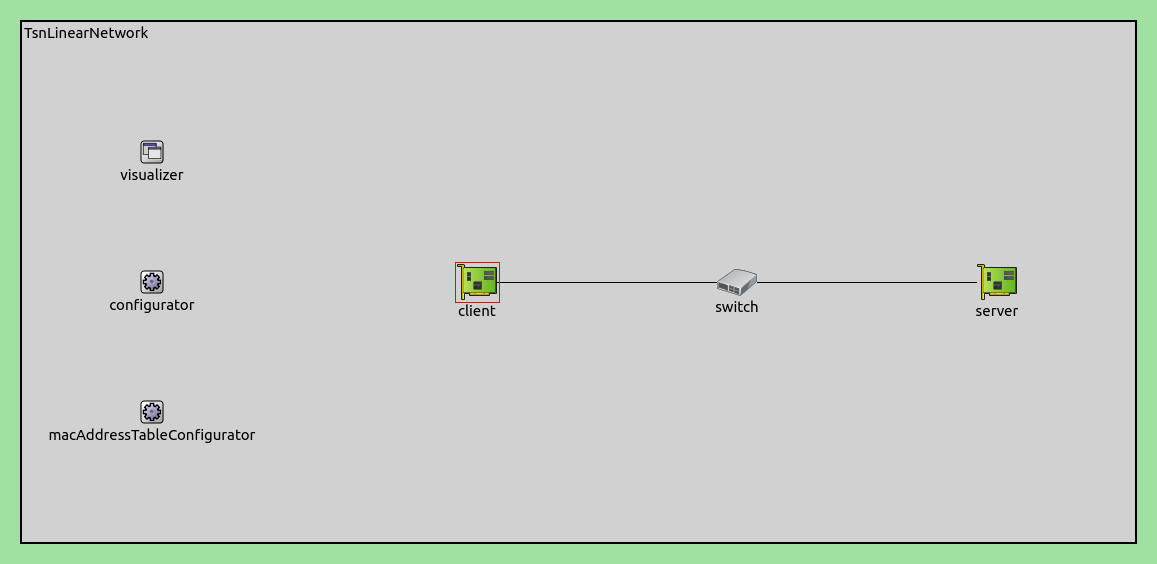

网络中有三个网络节点，客户端和服务器为 TsnDevice 模块，交换机为 TsnSwitch 模块，它们之间的链路采用100Mbps EthernetLink 通道。

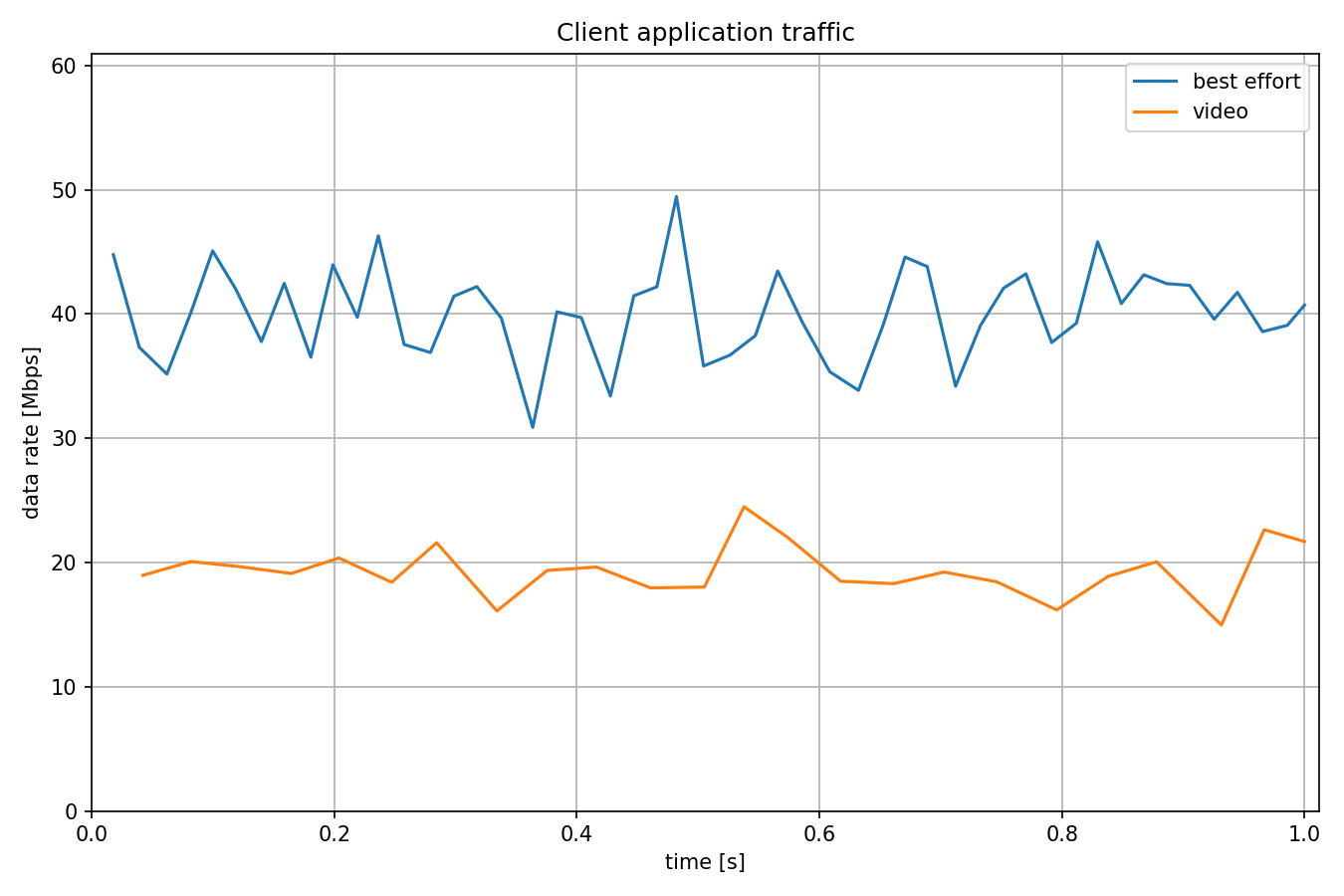

网络中有四个应用程序，在客户端和服务器之间创建两个独立的数据流。BE流带宽为~48 Mbps，Video流带宽为 ~24 Mbps。

# client applications
*.client.numApps = 2
*.client.app[*].typename = "UdpSourceApp"
*.client.app[0].display-name = "best effort"
*.client.app[1].display-name = "video"
*.client.app[*].io.destAddress = "server"
*.client.app[0].io.destPort = 1000
*.client.app[1].io.destPort = 1001
*.client.app[*].source.packetLength = 1000B
*.client.app[0].source.productionInterval = exponential(200us)
*.client.app[1].source.productionInterval = exponential(400us)

# server applications
*.server.numApps = 2
*.server.app[*].typename = "UdpSinkApp"
*.server.app[0].display-name = "best effort"
*.server.app[1].display-name = "video"
*.server.app[0].io.localPort = 1000
*.server.app[1].io.localPort = 1001

这两个流具有两种不同的流量类别：尽力而为流和视频流。桥接层通过UDP目标端口识别传出的数据包。客户端使用IEEE 802.1Q PCP字段对流进行编码，交换机则对流进行解码。

# enable outgoing streams
*.client.hasOutgoingStreams = true

# client stream identification
*.client.bridging.streamIdentifier.identifier.mapping = [{stream: "best effort", packetFilter: expr(udp.destPort == 1000)},
                                                        {stream: "video", packetFilter: expr(udp.destPort == 1001)}]

# client stream encoding
*.client.bridging.streamCoder.encoder.mapping = [{stream: "best effort", pcp: 0},
                                                {stream: "video", pcp: 4}]

# disable forwarding IEEE 802.1Q C-Tag
*.switch.bridging.directionReverser.reverser.excludeEncapsulationProtocols = ["ieee8021qctag"]

# switch stream decoding
*.switch.bridging.streamCoder.decoder.mapping = [{pcp: 0, stream: "best effort"},
                                                {pcp: 4, stream: "video"}]

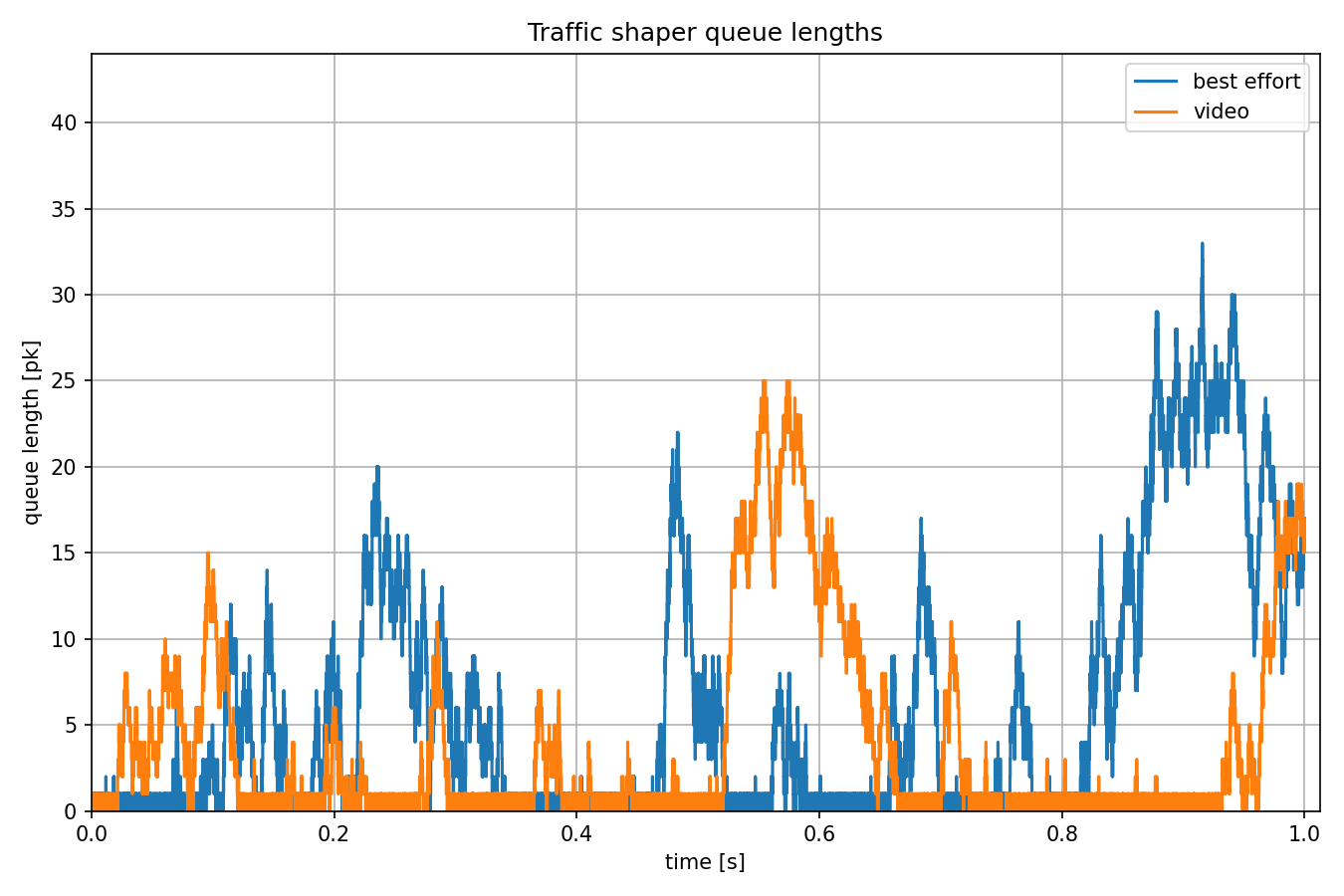

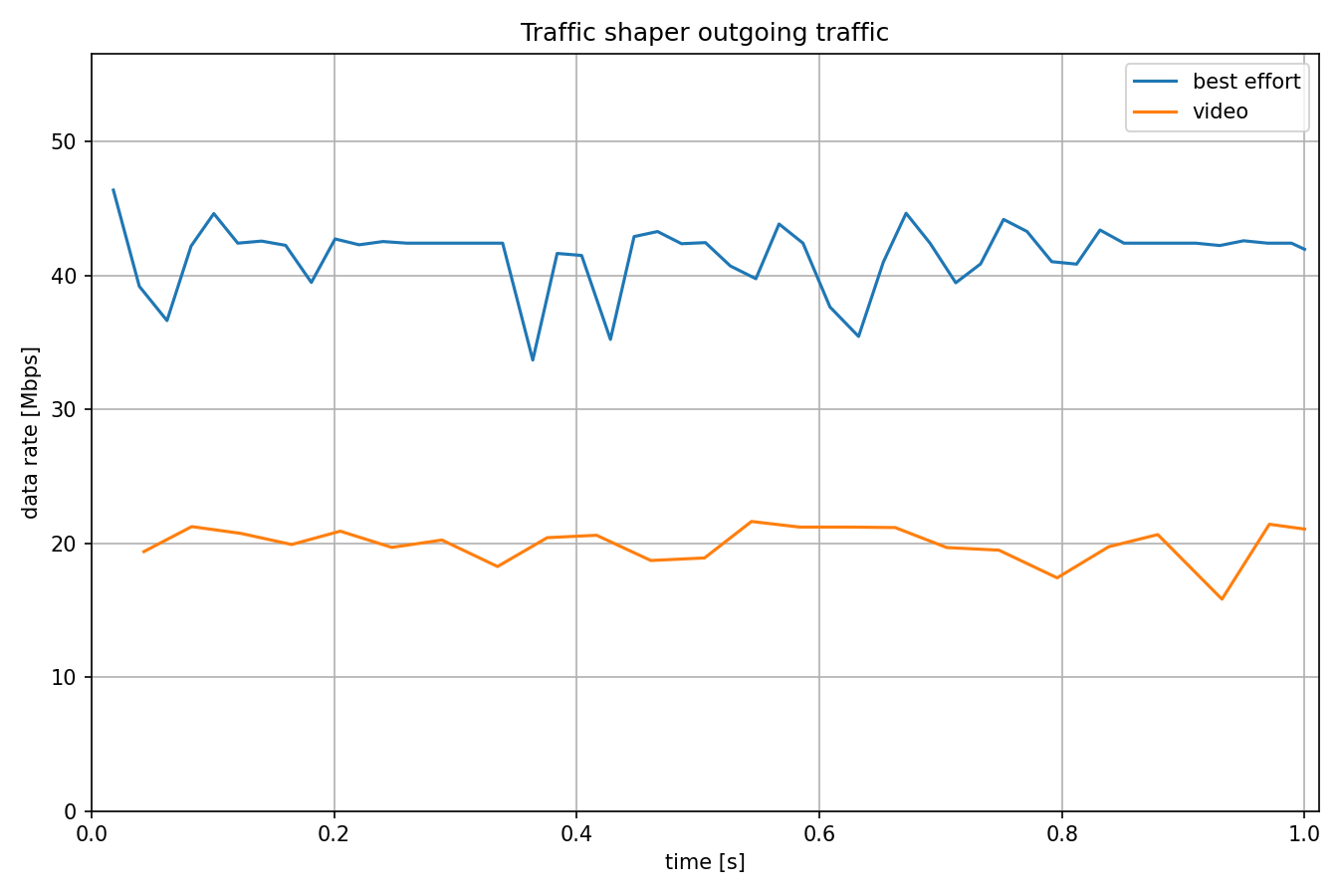

异步流量整形器要求每个数据包的传输合格时间在入端口的每流过滤器处计算出来。

# enable ingress per-stream filtering
*.switch.hasIngressTrafficFiltering = true
# per-stream filtering
*.switch.bridging.streamFilter.ingress.numStreams = 2
*.switch.bridging.streamFilter.ingress.classifier.mapping = {"best effort": 0, "video": 1}
*.switch.bridging.streamFilter.ingress.*[0].display-name = "best effort"
*.switch.bridging.streamFilter.ingress.*[1].display-name = "video"

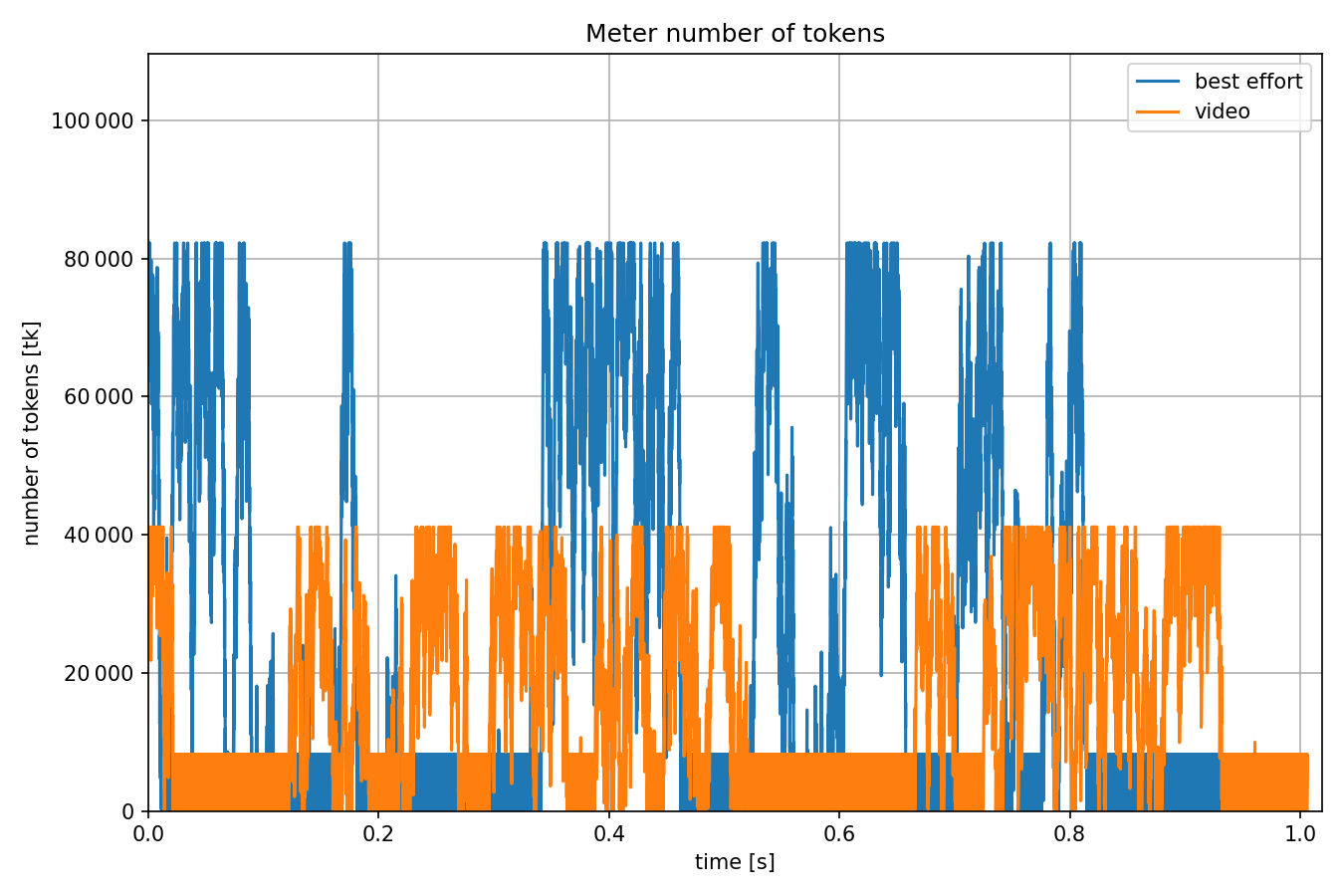

*.switch.bridging.streamFilter.ingress.meter[*].typename = "EligibilityTimeMeter"
*.switch.bridging.streamFilter.ingress.meter[*].maxResidenceTime = 10ms
*.switch.bridging.streamFilter.ingress.meter[0].committedInformationRate = 41.68Mbps
*.switch.bridging.streamFilter.ingress.meter[0].committedBurstSize = 10 * (1000B + 28B)
*.switch.bridging.streamFilter.ingress.meter[1].committedInformationRate = 20.84Mbps
*.switch.bridging.streamFilter.ingress.meter[1].committedBurstSize = 5 * (1000B + 28B)

*.switch.bridging.streamFilter.ingress.filter[*].typename = "EligibilityTimeFilter"
